Securing Energy Independence: The Essential Guide to High-Performance Solar PV Wire

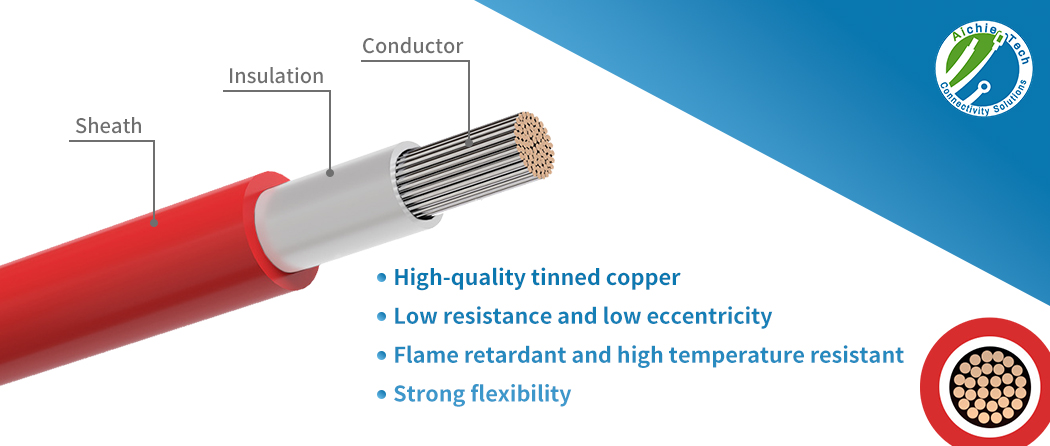

Solar photovoltaic (PV) wire, also known as solar cable, is a specialized high-performance cable designed specifically for renewable energy systems. Its structure can be visualized as a high-conductivity metal conductor (such as tinned copper) encased in a layer of robust, cross-linked "protective clothing" (XLPO insulation). This design gives it superior performance unmatched by ordinary wires, making it an ideal choice for harsh outdoor environments such as intense UV exposure, extreme temperature fluctuations, and long-term weathering.

As global energy markets face volatility due to geopolitical tensions and fossil fuel supply constraints, the shift towards energy independence through solar power has become a strategic priority for nations and industries alike. For B2B buyers, wholesalers, and manufacturers, selecting the right PV Wire Harness is not just a purchasing decision—it is a critical investment in system longevity and safety.

Its core value stems from four outstanding characteristics of photovoltaic cable material:

1. Extreme Weather Resistance: Designed to withstand decades of exposure to sunlight, rain, and snow. It possesses superior UV resistance and waterproof capabilities, adapting to stringent requirements from desert heat to coastal humidity.

2. Wide Temperature Adaptability: It can operate stably in extreme temperatures from -60℃ to +200℃ (or higher for specialized models), ensuring consistent power transmission whether in freezing northern winters or scorching summer peaks.

3. Excellent Safety and Stability: Possesses good flame-retardant and low-smoke properties, resistant to electrical arcing and insulation breakdown, ensuring safety and reliability in high-voltage DC systems.

4. Strong Environmental Compliance: Non-toxic and halogen-free; specifications meet strict international environmental standards, ensuring your projects comply with green energy policies globally.

Main Models and Application Scenarios

I. Classification by Standard and Model

UL4703 Photovoltaic Wire: The North American Standard

*Rated Temperature: 90℃ (Wet/Dry)

*Rated Voltage: 600V, 1000V, or 2000V DC

*Features and Uses: Single conductor, sunlight resistant, flame retardant. Widely used in residential and commercial solar installations across the US and Canada. Essential for projects requiring UL Certified Solar Cable.

EN50618 / H1Z2Z2-K: The European Standard

Rated Temperature: -40℃ to +90℃

Rated Voltage: 1.0/1.0kV AC / 1.5/1.5kV DC

Features and Uses: Double insulation (XLPO), low smoke zero halogen (LSZH). Designed specifically for European markets requiring CE RoHS REACH Compliance and high safety in public buildings.

TUV Certified PV1-F: The Global High-Performance Choice

*Rated Temperature: -40℃ to +120℃

*Rated Voltage: 1000V DC / 1500V DC

*Features and Uses: Highly flexible, abrasion resistant. Ideal for complex wiring paths in large-scale solar farms and industrial Solar Cable Assembly projects.

II. Classification by Application Scenarios (Energy Security Focus)

High-Irradiance Desert Projects: Suitable for photovoltaic power stations in regions seeking energy independence from oil imports. It is recommended to use high-temperature resistant PV wire (up to 120℃) to ensure stable insulation and conductivity under long-term intense solar exposure.

Large-Scale Utility Grids: Designed for the high-voltage transmission requirements of national grid connections. Large cross-sectional area (e.g., 10mm², 16mm²) Photovoltaic Cable Manufacturer solutions should be selected to reduce resistance loss and heat generation, ensuring safe and efficient current transmission over long distances.

Distributed Residential & Storage Systems: Suitable for rooftop solar and home energy storage units. Flexible, easy-to-install PV wire is required to accommodate space-constrained wiring while maintaining safety standards for indoor/outdoor transitions.

Professional Manufacturing, Enabling Reliable Connections

Solar PV wires, with their comprehensive performance, have become the preferred material for high-end applications in fields such as utility-scale solar farms, industrial energy storage, agricultural photovoltaic systems, and remote off-grid power solutions.

Aichie has been deeply involved in the wire and harness industry for over 12 years, possessing mature capabilities in the design and customized production of high-quality solar cables. We strictly adhere to international quality management systems and can provide reliable PV Wire Harness solutions, from standard products such as UL4703 and EN50618 to fully customized solutions, tailored to your specific application needs (such as specific voltage ratings, lengths, connector types, environmental certifications, etc.), ensuring stable connections for your products in any extreme environment.

Our factory strength ensures supply chain stability even during global logistical disruptions. We hold comprehensive certifications including UL, CE, RoHS, and REACH, guaranteeing that every meter of cable we produce meets the strictest global compliance standards. This allows our B2B partners to export with confidence, knowing their products will clear customs and meet local safety regulations effortlessly.

For detailed technical parameters or solutions for specific scenarios, please feel free to contact us.
