High-voltage shielded cable: One-stop solution to the pain points of high-voltage and complex environment transmission, significantly reducing operation and maintenance costs
Item No :
10mm² EV CableOrder(MOQ) :
1 RollPayment :
T/T,PayPal,XTransfer,Google pay,L/C,Western Union,MoneyGramProduct Origin :
ChinaColor :
OrangeShipping Port :
ShenzhenLead Time :
28 days10mm² Orange Double Insulated EV Charging Cable 1000/1500V Stranded Bare Automotive HV Shielded Cable
Our 10mm² Orange High Voltage Shielded Cable is specifically engineered for the demanding environment of modern Electric Vehicles (EV) and Hybrid Electric Vehicles (HEV). Designed to handle up to 1500V DC, this cable provides secure power transmission between the high-voltage battery pack, inverter, and electric motor while ensuring superior electromagnetic compatibility.

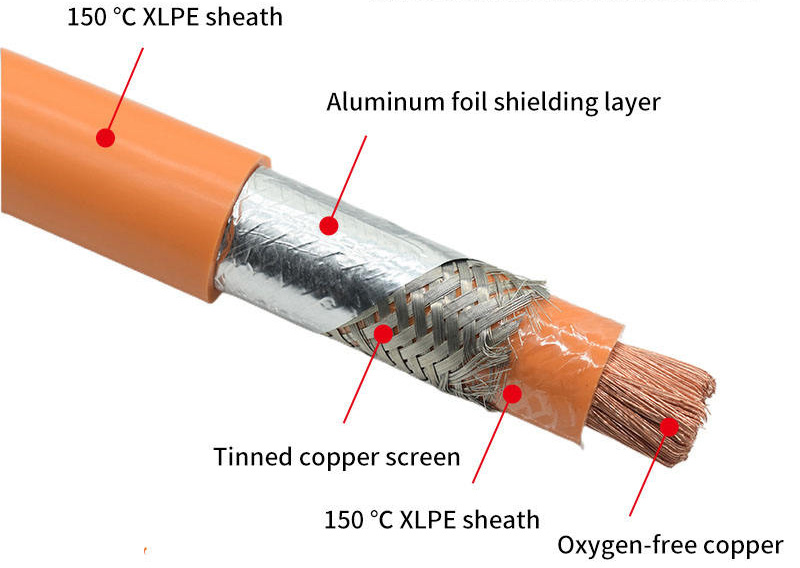

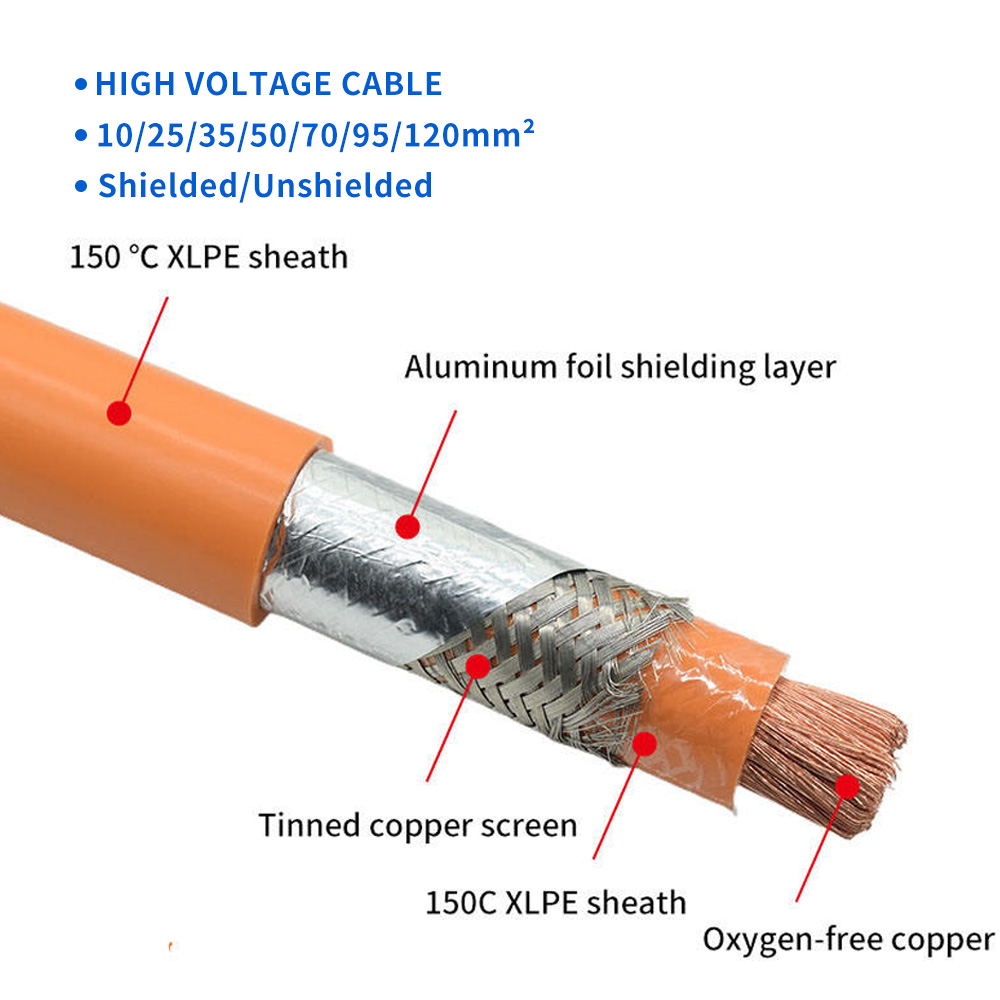

| Structure |
|
150℃ XLPE |
|
|
Aluminum Foil | |
|
|
Tinned Copper Braided | |
|
|
150℃ XLPE | |
|
|
Oxygen-free Copper | |

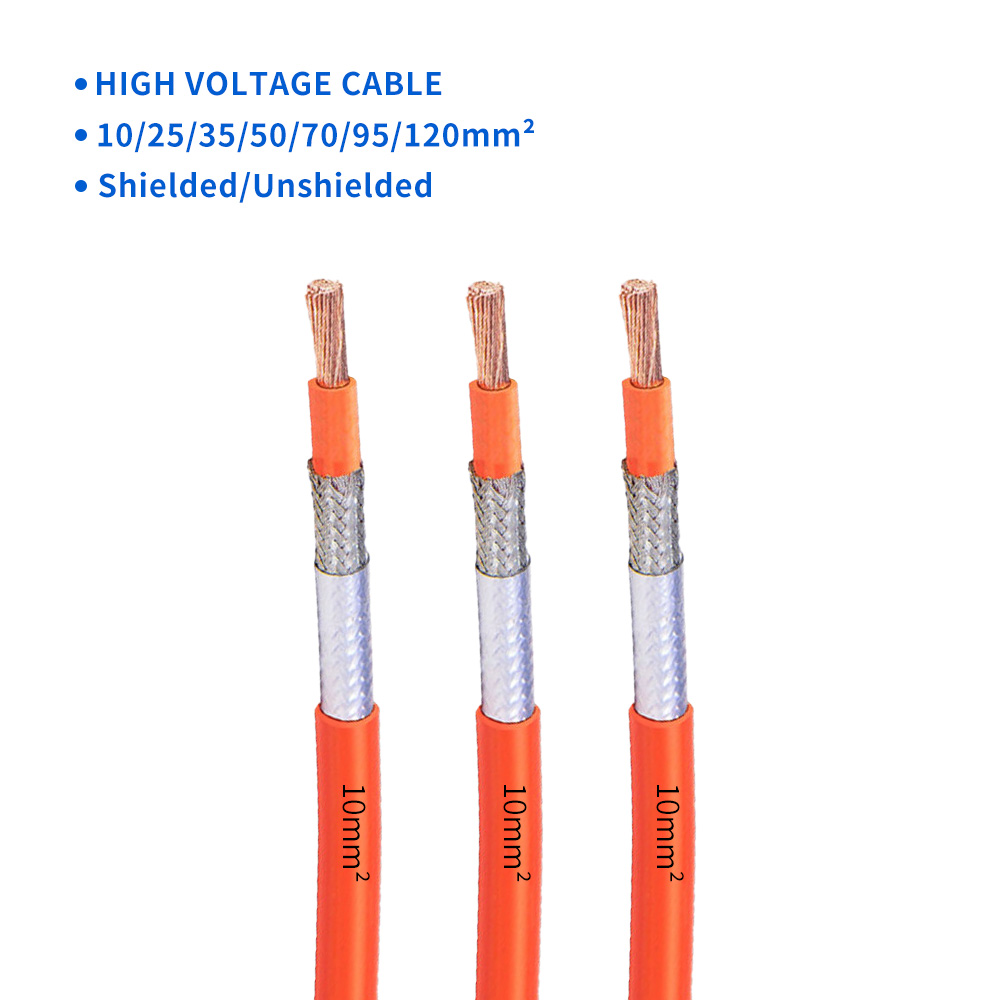

| Size | 10mm² 25mm² 35mm² 50mm² 70mm² 95mm² 120mm² | |
| Performance | Working Temperature | 150℃ |
| Shielding Type | Aluminum Foil & Tin-plated Copper Braided (double layer) |
Core Advantages & Engineering
Superior EMI/EMC Shielding: Equipped with a Tinned Copper Braid + Aluminum Foil double shielding layer. This effectively blocks electromagnetic interference, protecting the vehicle’s sensitive control electronics.
High-Voltage Reliability: Rated for 1000V AC / 1500V DC, providing a significant safety margin for 400V and 800V EV architectures.

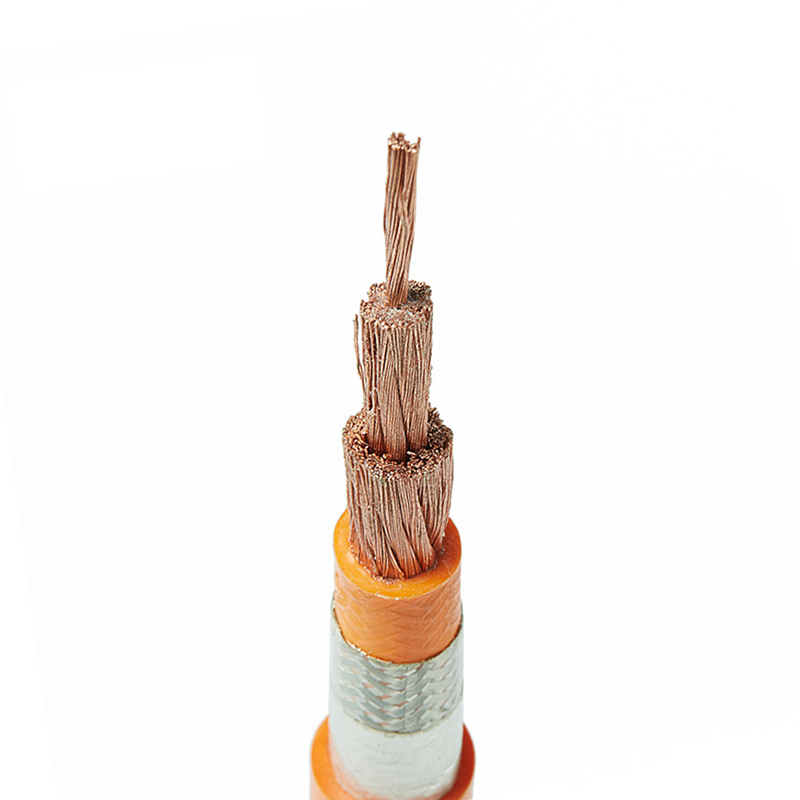

Exceptional Flexibility: Despite its 10mm² cross-section, the fine-stranded conductor design ensures a tight bending radius, making it easy to install in the cramped engine bays or battery chassis of electric vehicles.
Double Insulation Protection: The dual-layer insulation (typically XLPE/Silicon Rubber) provides excellent dielectric strength and resistance to abrasion, oil, and thermal aging.
High Temperature Rating: Stable performance from -40°C to +125°C (up to 150°C for short peaks), meeting automotive-grade thermal requirements.
Applications in the EV Industry
High-Voltage Wiring Harness: The primary power link between the battery and the PDU (Power Distribution Unit).
On-Board Chargers (OBC): Connecting the charging inlet to the battery system.
Electric Drive Systems: Wiring for the Motor Controller and Traction Motor.
DC Fast Charging: Internal cabling for high-power DC charging stations.
