Its anti-oxidation copper core and robust shielding provide a definitive solution for high-voltage and harsh environment challenges, maximizing reliability while slashing long-term operational costs.
Item No :
120mm² EV CableOrder(MOQ) :
1 RollPayment :
T/T,PayPal,XTransfer,Google pay,L/C,Western Union,MoneyGramProduct Origin :
ChinaColor :
OrangeShipping Port :
ShenzhenLead Time :

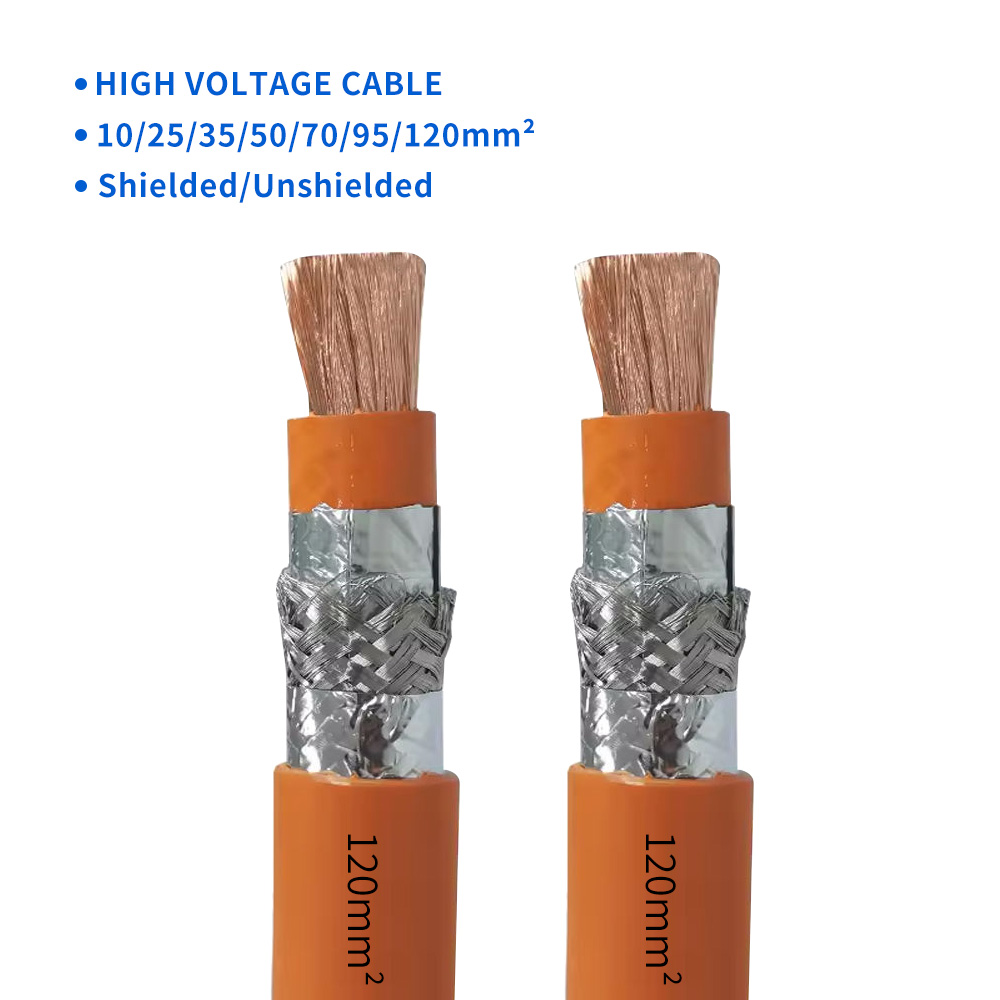

28 days120mm² High Voltage EV Cable with Copper Core Anti-Oxidation for EV Battery

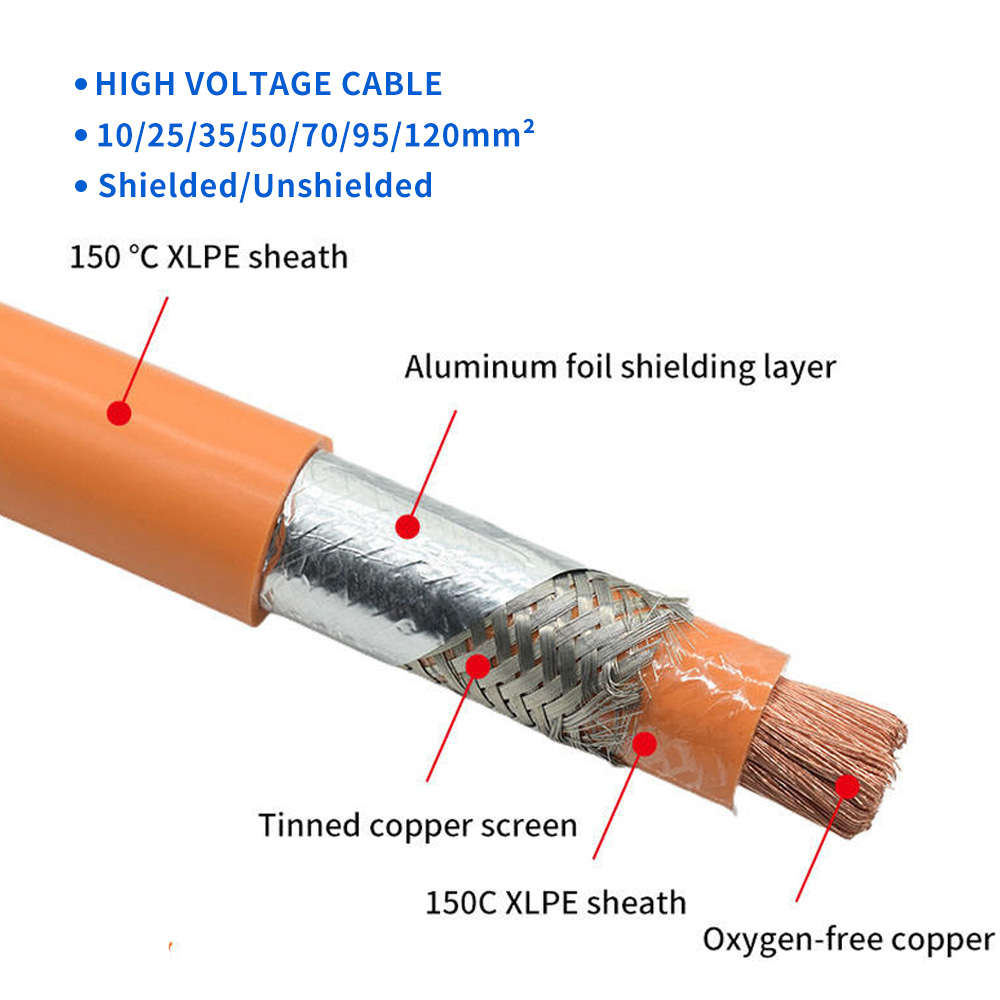

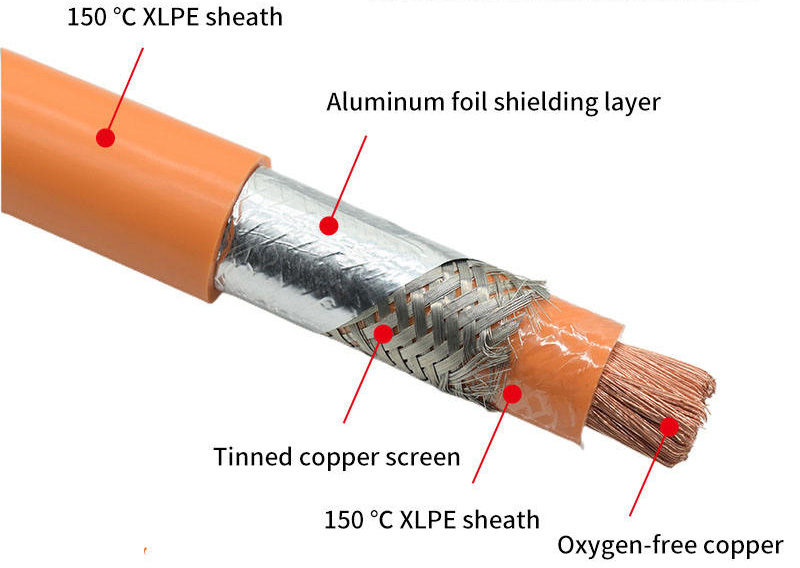

| Structure |
|
150℃ XLPE |
|
|
Aluminum Foil | |
|
|
Tinned Copper Braided | |
|
|
150℃ XLPE | |
|
|
Oxygen-free Copper | |
| Size | 10mm² 25mm² 35mm² 50mm² 70mm² 95mm² 120mm² | |
| Performance | Working Temperature | 150℃ |
| Shielding Type | Aluminum Foil & Tin-plated Copper Braided (double layer) |
Key Features
Extreme Current-Carrying Capacity: The 120mm² cross-section with oxygen-free copper conductors is designed to handle ultra-high currents (300A+) with minimal heat generation and voltage drop, essential for rapid charging of heavy-duty EVs.
Premium Oxidation & Corrosion Resistance: The tinned copper shielding and specially treated conductors significantly inhibit oxidation, ensuring stable resistance and long-term performance integrity in humid or chemically aggressive environments.
Military-Grade EMI/RFI Shielding: A dense double-layer shield (aluminum foil + tinned copper braid) provides exceptional protection against electromagnetic interference, safeguarding sensitive battery management and vehicle control systems.
Engineered for Maximum Durability: Combining 150℃ XLPE insulation with an abrasion-resistant sheath, this cable is built to withstand mechanical stress, thermal cycling, and prolonged outdoor exposure, offering an extended lifecycle.
Application
Heavy-Duty & Commercial Electric Vehicles: The optimal main power cable for electric buses, mining trucks, and port logistics vehicles, as well as for high-power charging depots and pantograph charging systems.
Utility-Scale Energy Storage Systems (ESS): Primary DC interconnection cables within and between containerized mega-watt hour (MWh) battery storage units for grid support and renewable energy integration.
High-Power Industrial & Marine Applications: Critical power feeds for large ship-to-shore cranes, industrial melting furnaces, and as main power distribution cables in offshore platforms or large vessels.
Critical Power Infrastructure: Suitable for heavy-current busbars in electrical substations, power plants, and as robust connections for ultra-high-voltage test equipment.
Specialized Heavy Machinery: Designed for the rigorous power demands of all-electric excavators, rail locomotives, and other high-amperage mobile equipment.
