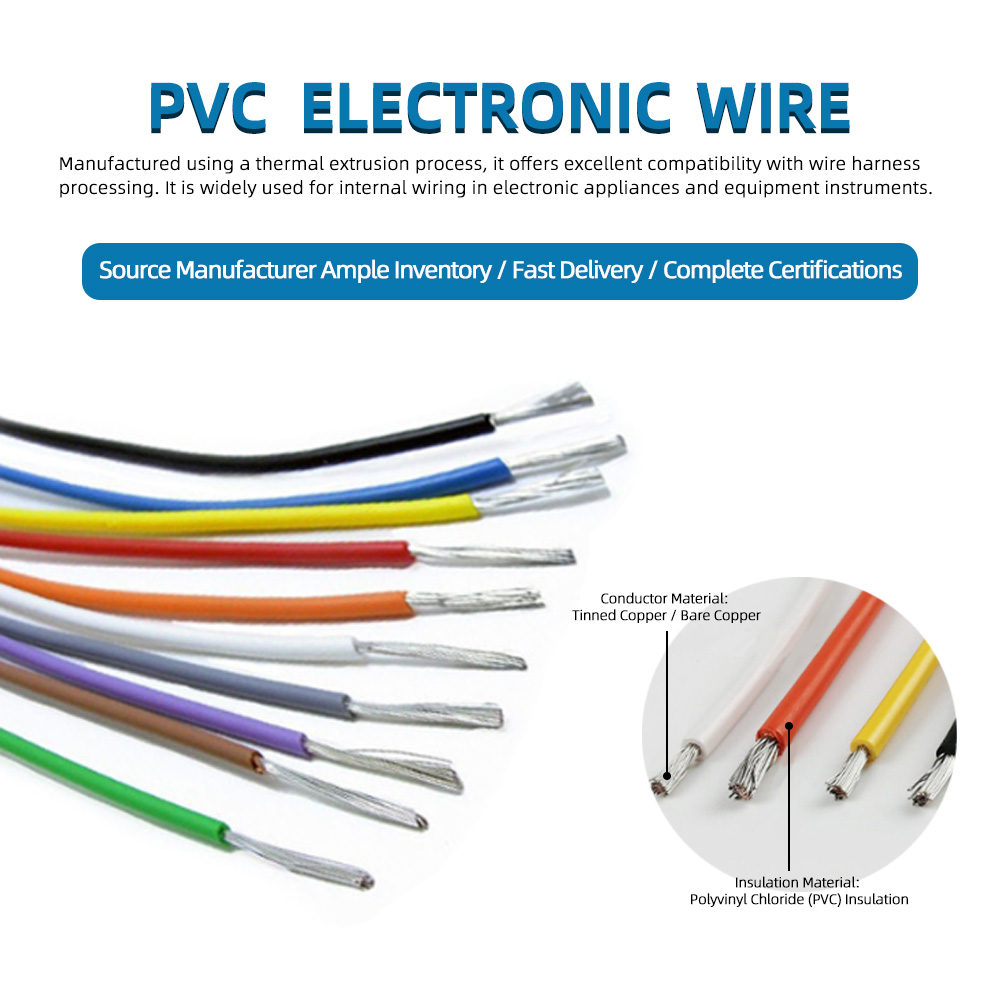

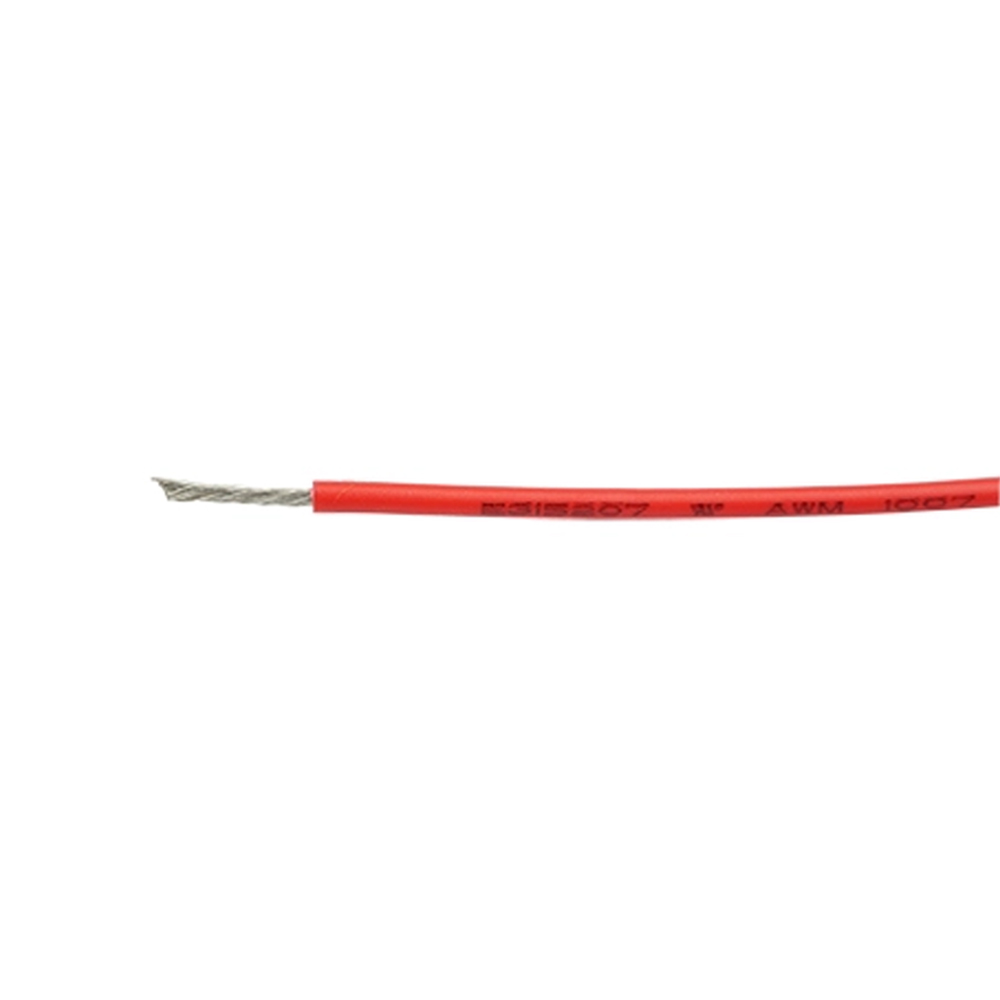

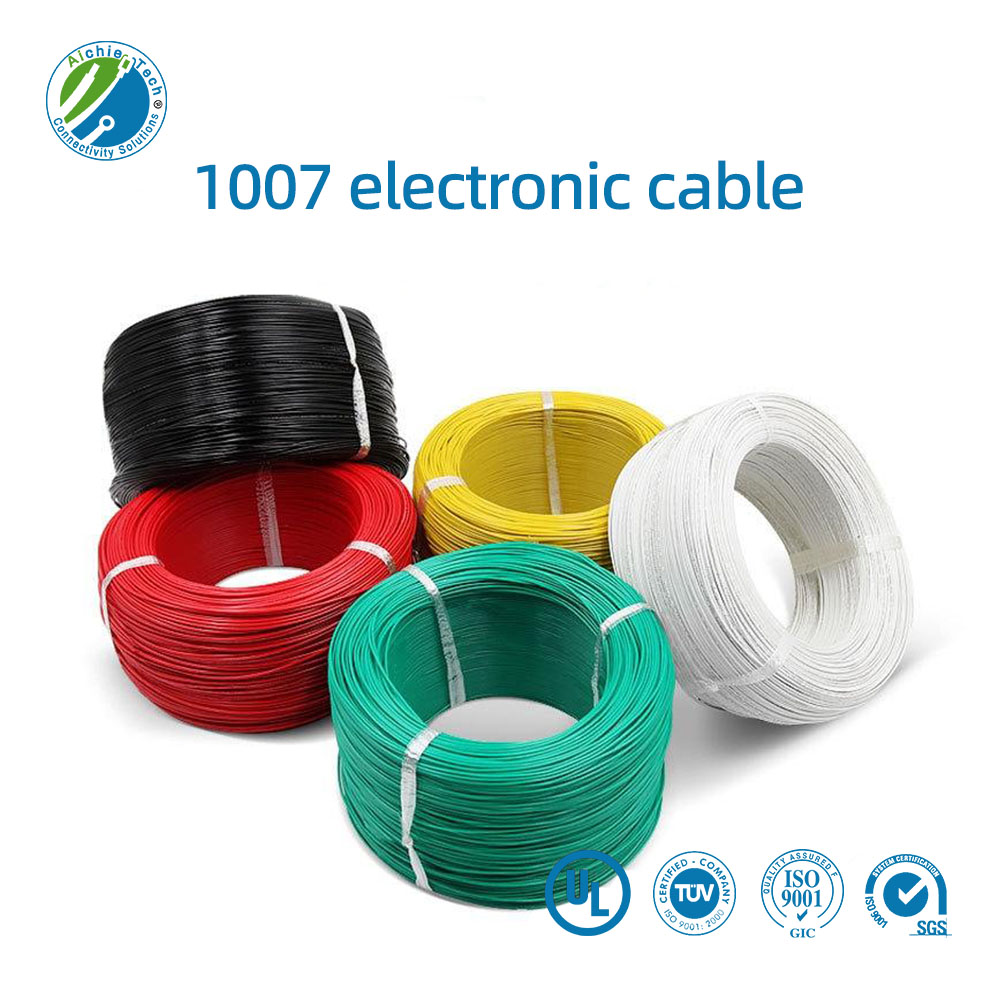

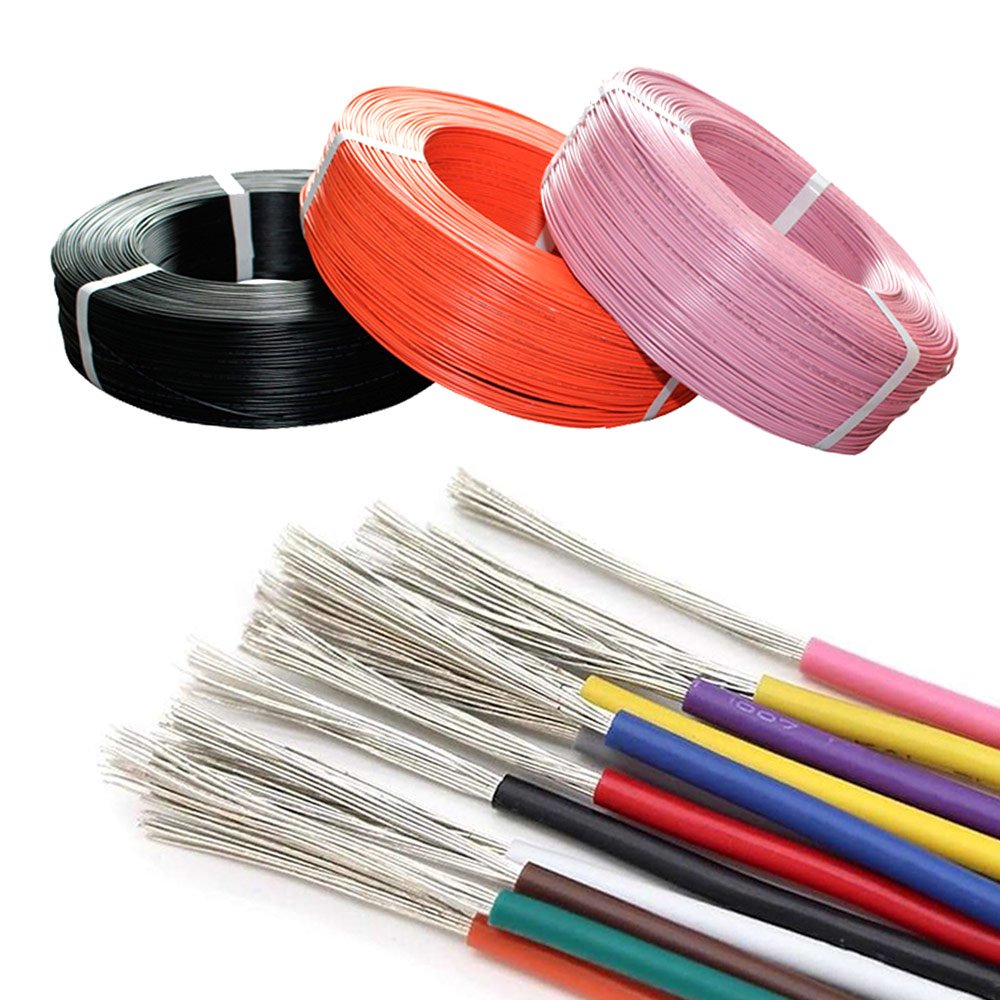

Looking for UL1007 electronic wire? It features bare/tinned copper construction, PVC insulation, and is ideal for internal wiring of instruments, electronics, and automotive systems
Item No :

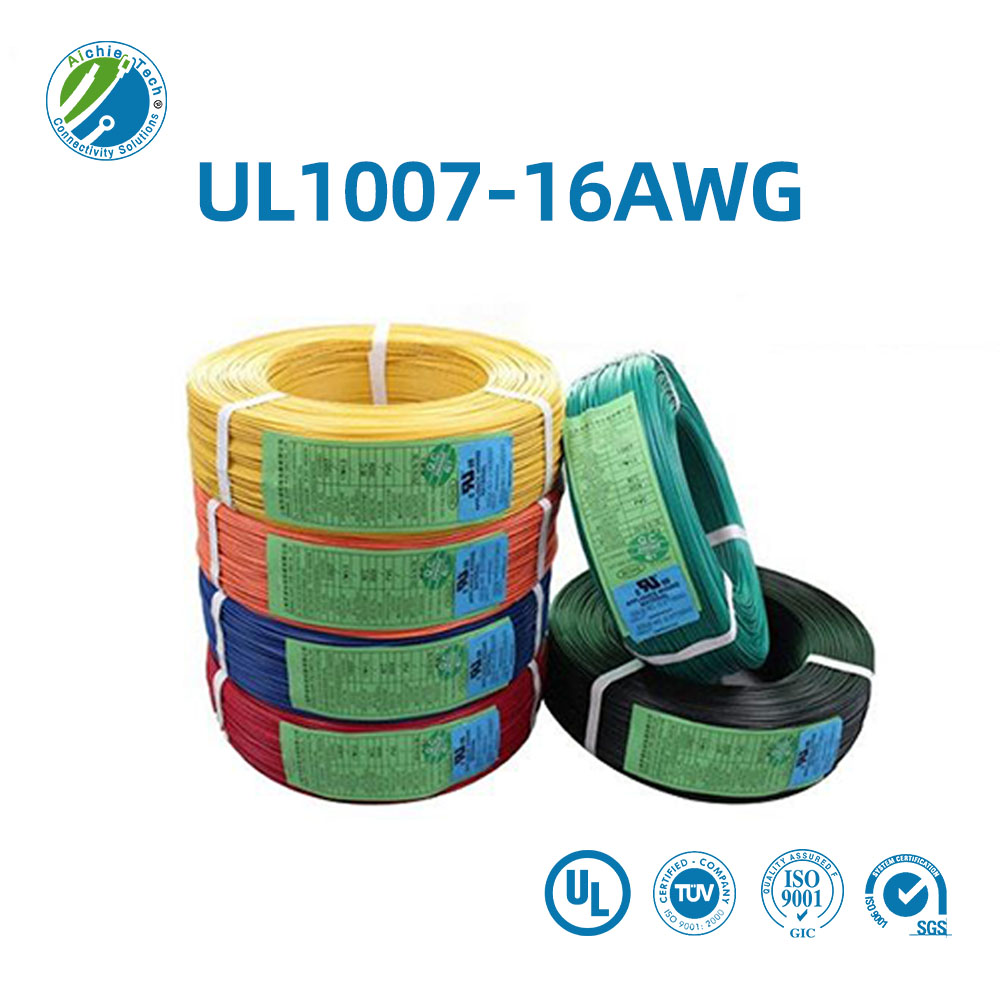

UL1007 16AWGOrder(MOQ) :
1 RollPayment :
T/T,PayPal,XTransfer,Google pay,L/C,Western Union,MoneyGramProduct Origin :
ChinaColor :
Black Brown Red Orang Yellow Green Blue Violet Grey WhiteShipping Port :
SHENZHENLead Time :
15Days| Wire Type | UL1007 |
| Color |
|
| Size(AWG) | 16,18,20,22,24,26,28,30, 32 |

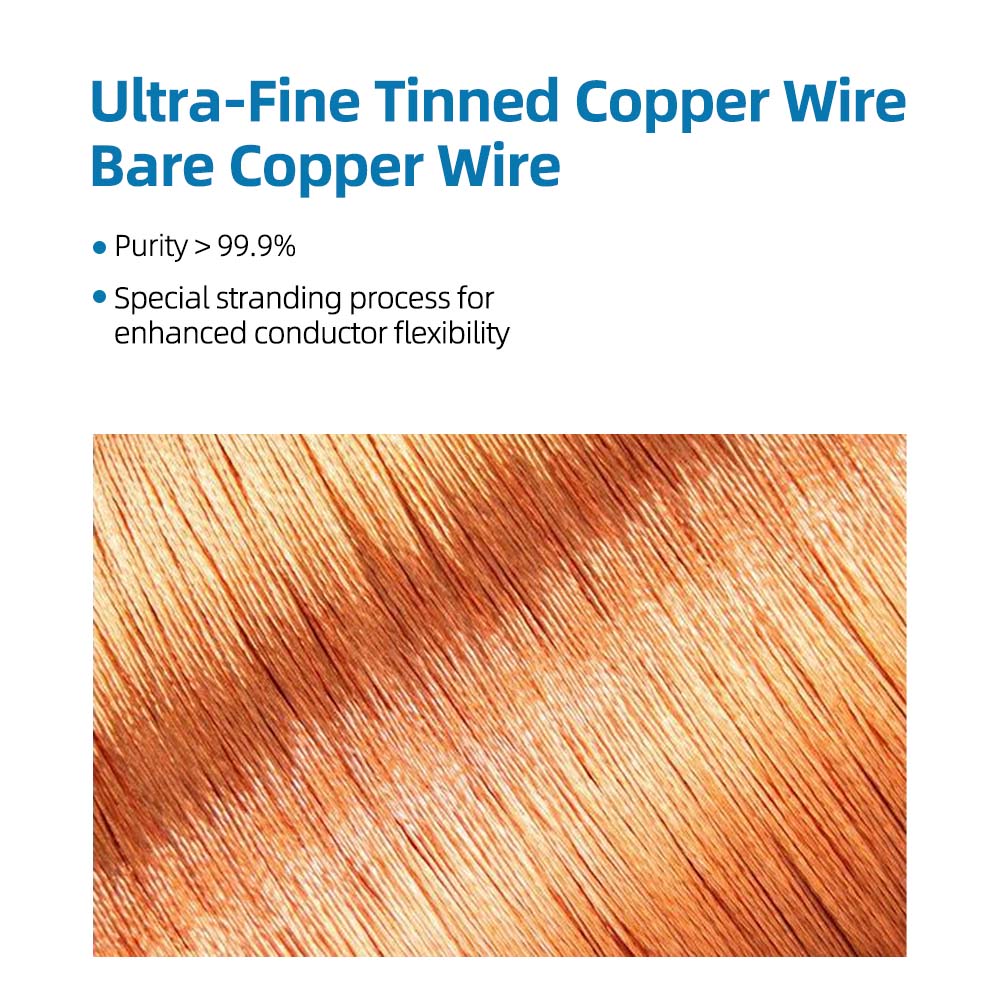

| Conductor | Tinned Copper /Copper |
|
insulation |
PVC |
|
Temperature |
80°C（176°F） |
|
Rated Voltage |
300V |
|
Feature |
Acid resistance, oil resistance, moisture resistance, and mildew resistance. |
| Application | Ideal for meters, control circuits, computer peripherals, household appliances, and general electronics |
Products：
Note: Wire specifications can be customized
| AWG Size | Conductor Structure (No./dia mm) | Conductor Diameter (mm) | Insulation Thickness (mm) | Finished Outer Diameter (mm) | Bare Copper Resistance (Ω/km) | Tinned Copper Resistance (Ω/km) |
| 32 | 7/0.08 | 0.24 | 0.38 | 1.00±0.05 | 563.5 | 588.9 |
| 30 | 7/0.10 | 0.30 | 0.38 | 1.10±0.05 | 354 | 381 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20±0.10 | 223 | 239 |
| 26 | 7/0.16 | 0.48 | 0.38 | 1.30±0.10 | 140 | 150 |
| 24 | 7/0.20 | 0.60 | 0.38 | 1.40±0.10 | 87.6 | 94.2 |
| 22 | 7/0.254 | 0.78 | 0.38 | 1.60±0.10 | 55.4 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.38 | 1.70±0.10 | 34.6 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.38 | 2.00±0.10 | 21.8 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.30±0.10 | 13.7 | 14.6 |
