Ideal for audio systems, signal transmission, and electronic equipment requiring interference protection
Item No :
UL1185 Shielded Hook-Up WireOrder(MOQ) :
1 Roll(100m)Payment :
T/T,PayPal,XTransfer,Google pay,L/C,Western Union,MoneyGramProduct Origin :
ChinaColor :
Standard colors: Black, White, Red, Blue, Yellow, Green, Clear / CustomShipping Port :
ShenzhenLead Time :
3-7 Days

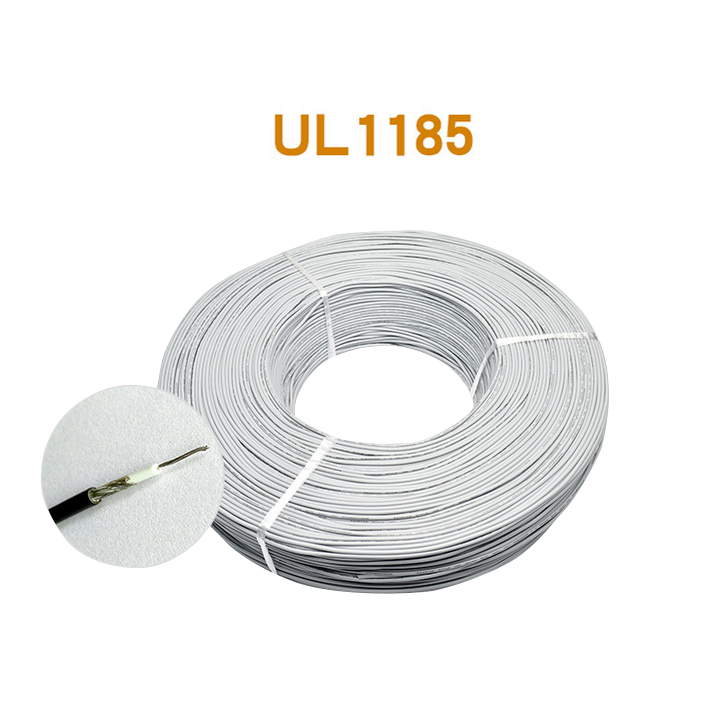

UL1185 Single Core Shielded Wire
This UL1185 shielded electronic wire is a high-performance single-core connector designed for audio, video, and signal transmission applications. It features a tinned copper conductor with spiral shielding and durable PVC insulation, providing excellent interference protection and reliable signal integrity. Widely used in recording studios, sound systems, and electronic devices requiring clean and stable signal flow.
| Wire Type | UL1185 |
| Color |
|
| Size(AWG) | 16,18,20,22,24,26,28,30 |
| Conductor | Tinned Copper /Copper |
|
insulation |
PVC |
|
Temperature |
80°C |
|
Rated Voltage |
300V |
Key Features
1. Spiral shielding provides excellent EMI/RFI protection for clean signal transmission.
2. Good electrical performance, flexibility, and easy solderability.
3. Cost-effective and commonly used shielded wire for audio and signal applications.
Applications
Recording studios, sound systems, video equipment, instruments, meters,
and other electronic devices requiring interference-free signal transmission.
Products
| UL Style& CSA Type | Conductor | Insulation Thickness | No.of core | Insulati on ID | Spiral shield | Jacket Thickness | Overall Diameter | Conductor Resistance at 20℃ | |
| AWG | No/mm | mm | No.of core | mm | NO/mm | mm | mm | Ω/KM | |
| UL1185 CSA （Stranded) | 30 | 7/0.102 | 0.4 | 1 | 1.1 | 32/0.1 | 0.4 | 2.2 | 381 |
| 28 | 7/0.127 | 0.4 | 1 | 1.2 | 38/0.1 | 0.4 | 2.3 | 239 | |
| 26 | 7/0.16 | 0.4 | 1 | 1.3 | 45/0.1 | 0.4 | 2.5 | 150 | |
| 24 | 11/0.16 | 0.4 | 1 | 1.4 | 46/0.1 | 0.4 | 2.6 | 94.2 | |
| 22 | 17/0.16 | 0.4 | 1 | 1.6 | 54/0.1 | 0.4 | 2.8 | 59.4 | |
| 20 | 21/0.178 | 0.4 | 1 | 1.8 | 56/0.1 | 0.4 | 3 | 36.7 | |
| 18 | 34/0.178 | 0.4 | 1 | 2 | 64/0.1 | 0.4 | 3.2 | 23.2 | |
| 16 | 26/0.25 | 0.4 | 1 | 2.4 | 74/0.1 | 0.4 | 3.5 | 14.6 |
|
About Us
Contact Us
 |
Tel: +86 769 23361430 | WeChat: +86 18027502150 |
| WhatsApp: +86 18027502150 |
Email: business@aichie.com |

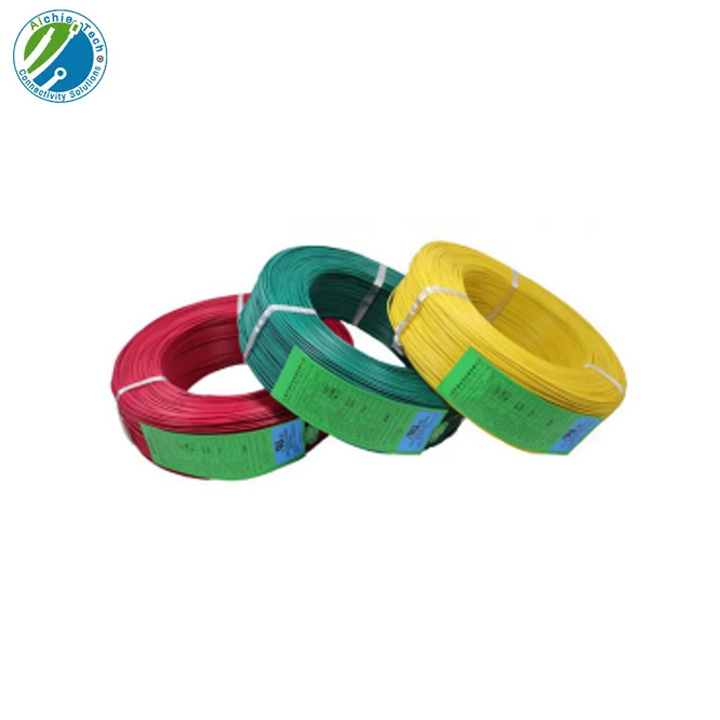

Looking for UL1007 electronic wire? It features bare/tinned copper construction, PVC insulation, and is ideal for internal wiring of instruments, electronics, and automotive systems
Read More

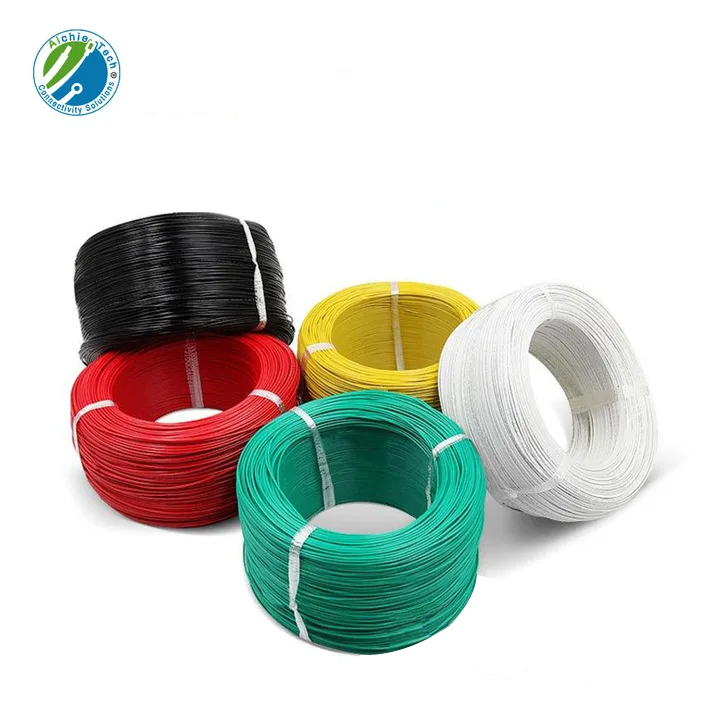

UL1007 covers the specifications for single core PVC insulated cables and wires (frequently referred to as “hook-up wire”) used in the internal wiring of electronic and electrical equipment.
